New Standard of CNC CMM

Today’s product life cycle is becoming increasingly shorter.
This means today’s manufacturers are required to develop products that
are lower-priced, and which possess higher functions and originality,
within much shorter periods than before.
Also, as with the spread of ISO 9000 compliance, the importance
of reliable measurements is receiving more and more focus.

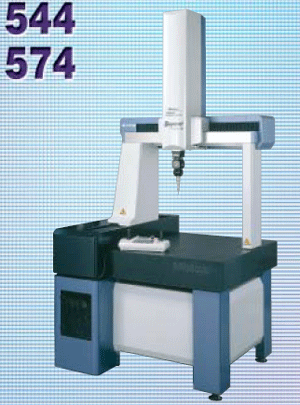

Mitutoyo proposes its new CNC CMM, the Beyond-Crysta C Series,
as an answer to current and future user needs.

• High-accuracy, E=(1.7+3L/1000)um*
*Beyond-Crysta C500/700/900 (when using SP-600/MPP-100 probe)
• High-speed & high-acceleration,
520mm/s & 0.23G*
*Beyond-Crysta C700/900 (when using SP-600/MPP-100 probe)
• Ultra silent motion
• Workshop use design
Optional 16°C to 26°C temperature compensation unit
• Various choices of probe system
Touch signal probe, high-speed scanning probe, vision probe,
laser probe, screw depth measuring probe, etc.

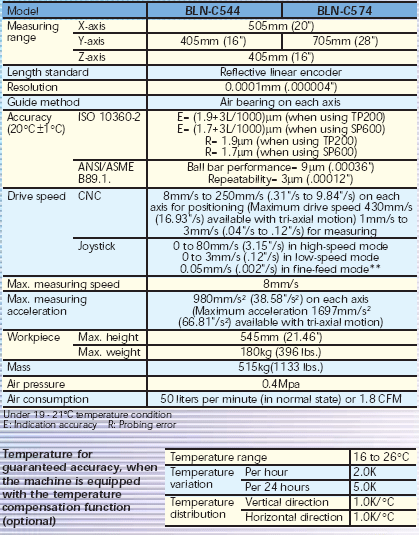

 Download Specification Here
