That's digital!
All models feature a Z-axis
with integrated digital-scale detecting unit.

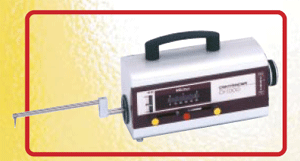

Mitutoyo's Contracer CV Series is a high-accuracy contour measuring instrument
with a digital scale on the X- and Z-axis. Digitization of the Z-axis gives you the following:
• No need to calibrate the Z-axis according to measurement magnification
• No need to change the Z-axis detection zone according to measurement magnification
• High-accuracy measurement for large-displacement contours
That's Mitutoyo!
A wide selection of models designed to make measuring easier, more comfortable and more accurate!
Outstanding measurement support, thanks to
Windows OS-compatible "FORMPAK-1000"
Contour Analysis
Windows 95/Windows 98/Windows NT4.0/Windows 2000 is used as the OS. Program commands
can be accessed via icons and a powerful Help function, making it easy for anyone to use . . . even a novice!

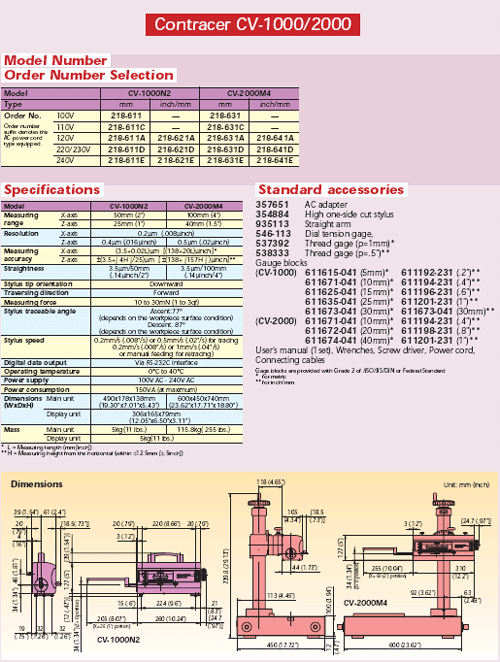

Download Specification Here
