The Beyond-Plus M has been developed by Mitutoyo in
its quest for low-cost, easy-to-use coordinate measuring
machines without compromising measuring accuracy.

Designed for high-accuracy
The Crysta-Plus M offers the highest measuring accuracy of
E=(3.5+4.5L/1000) um in this class.
The Y-axis guide rail, which is a one-piece design with the
granite plate, shows very little deterioration even over a long
period of time, and thus promises to maintain stable accuracy
for a long time.
The high precision air bearings are employed on all axial
guideways. Its smooth sliding results in fatigue-free 3-D
measurements.

One-Touch Air Clamp
Simply flip the appropriate switch at the
foot of the column to air-clamp an axis.
This allows workpieces to be quickly
and easily measured especially using a
centering microscope.

Constant measurement
The probe adapter with a constant grip is attached to the
bottom of the Z-axis spindle to minimize a personal error in
measurement. During measurement, this grip can reduce the
influence of the fine swinging of the hand and improve a
repeatability in measurement.

Touch Signal Disable Switch
A switch to disable touch signal input is incorporated into the
probe adapter so input can be disabled/enabled easily without
moving to the computer.

Upgrading to CNC
The Beyond-Plus M can be upgraded to a CNC machine.
Contact to Mitutoyo for details.

Probe illumination (optional)
The white LED probe illumination unit can be installed at
the rear of the probe adapter to illuminate the area around
the tip of the stylus.This is very useful for the deep hole
measurement.

The World’s First Temperature
Compensation System for Manual
CMM (optional)
An optional temperature compensation system can be
installed on the Beyond-Plus M. It guarantees the accuracy
of the CMM main unit under temperature conditions of
16 to 26°C.

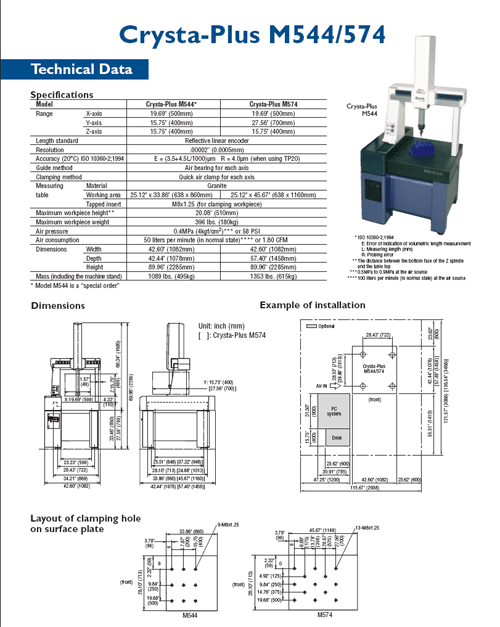

 Download Specification Here
