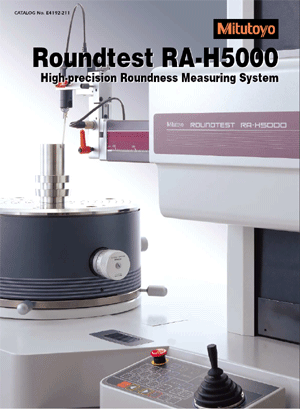

Roundtest RA-H5000
High-precision Roundness Measuring System

The Roundtest RA-H5000AS/AH has been developed by Mitutoyo
to provide the world's greatest degree of accuracy in roundness
measurement. High precision has been achieved without
sacrificing speed through a process involving constant redesign,
prototyping and experimentation. This development is based on
Mitutoyo's years of experience in the industry, along with
cutting-edge technology in the field of shape measurement.

Achieving the World's Most Accurate Measurement†

Turntable
Rotational accuracy: (0.02+6H/10000)́m

Vertical column (Z-axis)
Straightness: 0.05́m/100mm (0.3́m/350mm)
Parallelism with rotating axis: 0.2́m/350mm

Horizontal arm (R-axis)
Straightness: 0.5́m/200mm
Squareness against rotating axis: 0.5́m/200mm
†Data at April. 1. 2000
Greatly Reduced Measurement Time

Turntable
Rotating speed: 20rpm max. (during measurement: 2, 4, 6 or 10rpm)

Vertical column (Z-axis)
Speed of movement: 30mm/s max. (during measurement: 0.5, 1, 2 or 5mm/s)

Horizontal arm (R-axis)
Speed of movement: 20mm/s max. (during measurement: 1 or 5mm/s)
