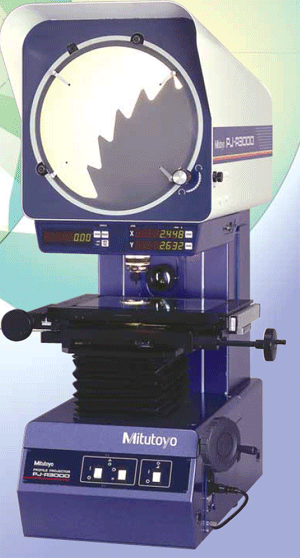

PJ-A3000 : Profile Projector

•A series of midsize profile projectors featuring bright, 315mm
(12.40") diameter screens and easy-to-operate XY measurement
tables.
•Easy-to-read digital counters* (XY stage travel) are located near the
projection screen, thereby minimizing strain associated with
excessive movement. A digital angle display eliminates the need to
perform complex calculations. *PJ-A3005D-50, PJ-A3005F-150, PJ-A3010F-100 and PJ-A3010F-200
•A floating table makes measuring quicker and easier.
•The PJ-A3000* can output XY
coordinate data. Highly efficient
two-dimensional data processing is
available by connecting to the
optional QM-Data200.
*Except for 302-700, 302-709 and 302-719

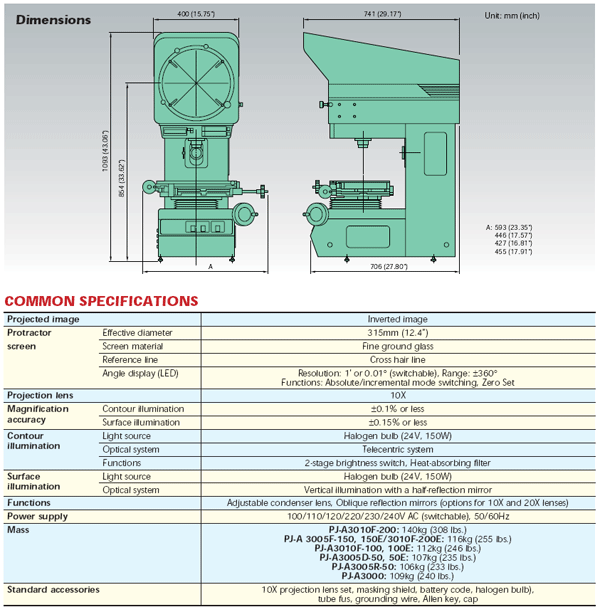

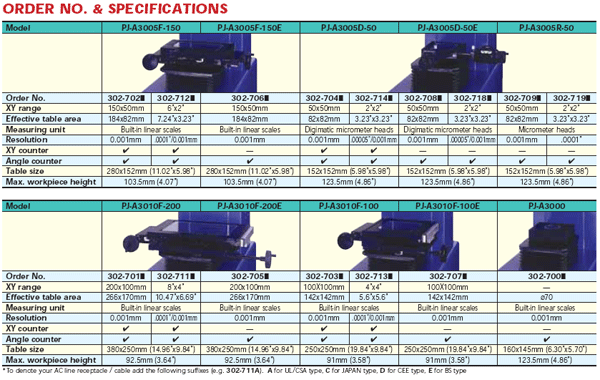

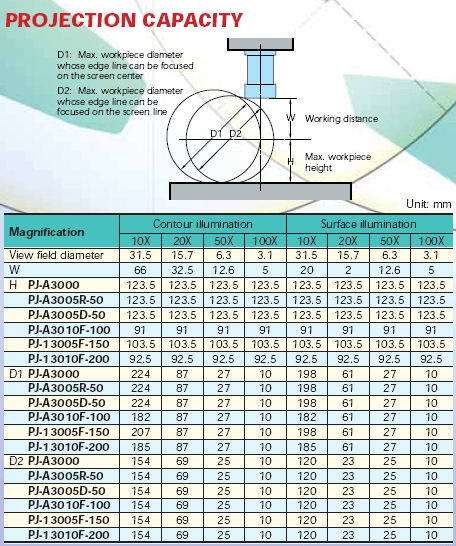

 Download Specification Here
