MF-A500/1000 : Measuring
Microscope
Features
• Bright field observation, clear and flare less erect image,
wide
field of view.
• Long working distance objectives, up to 100x
magnification
(total: 2000x).
• Aperture diaphragms in the transmitted
illuminaion and
reflected illumination system as standard feature.
• The
quick-release system, which is especially useful in
longstroke
measurements.
• Focus and measure using the fine/coarse
movement handle with
the large-size grips on both sides of the column.
•
Built in X- and Y-axis Zero-set switches (Z-axis has a non-built-in
Zero set
switch)
• Available with the Vision Unit for upgrading to a
vision
measuring system.

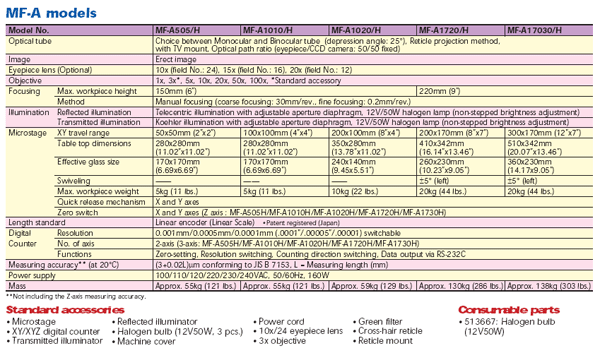

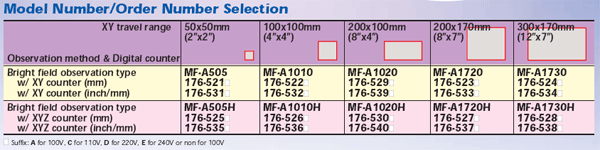

Download
Specification Here
