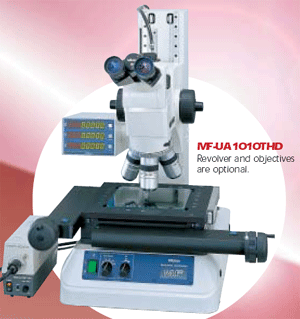

MF-UA500/1000 : Measuring Microscope

Features
• Bright field observation, clear and flare less erect image, wide
field of view.
• Long working distance objectives, up to 200x magnification
(total: 4000x).
• Infinity-correction optical system same as that of high power
inspection microscopes (FS series).
• Bright/Dark-field observations, Polarized observation and
Differential Interference Contrast (DIC) observation.
• The quick-release system, which is especially useful in longstroke
measurements.
• Focus and measure using the fine/coarse movement handle with
the large-size grips on both sides of the column.
• Built in X- and Y-axis Zero-set switches (Z-axis has a non-built-in
Zero set switch)
• Inward type revolver with 4 lens mount.
• Improved eye level lens for fatigue free use.
• Available with the Vision Unit for upgrading to a vision measuring system.

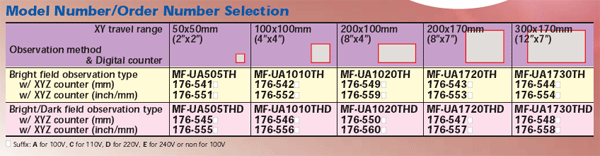

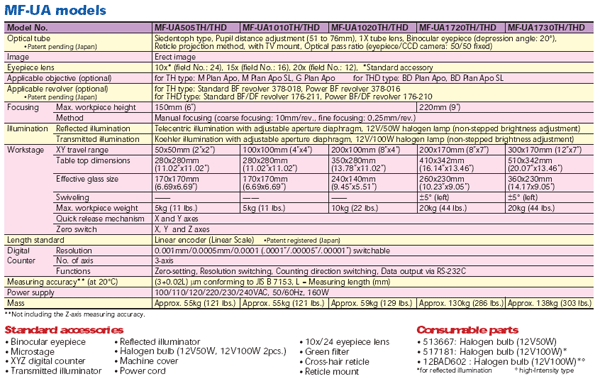

 Download Specification Here
