PH10MQ

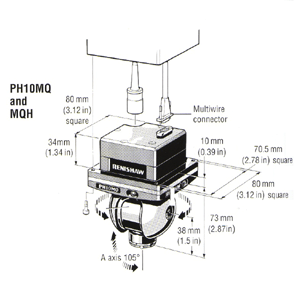

The PH10M and PH10MQ/H are the heads with the most functional capacoty.The PH10s can carry long extension bars ans complex probes,such as video or TP7M.The advantage of the highly repeatable,kinematic autojoint is that it allows rapid probe or extension bar changing without theneed forre-qualification.The PH10MQ is a varient that allows the motorised head to be attached directly to the quill with the 'cube' of the head inside the quill itself. This option provides a neater and shorter probe mount, with the swivel only protruding from the quill. The PH10MQH has the head rotated by 45 degree.

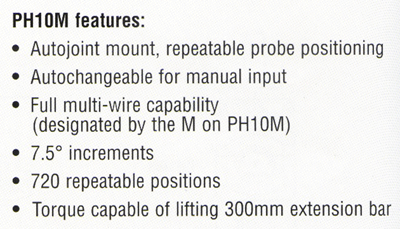

Feature

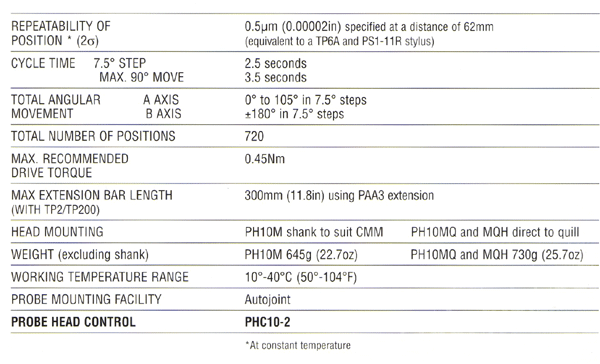

Specification
