PH10T

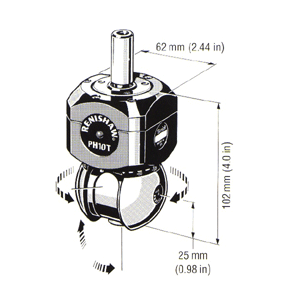

The PH10T is a versatile,indexable head that connects the probe sensor to the CMM quill. The PH10T can be repeatably oriented to any one of 720 positions, which allows the inspection of any feature of a part. All M8 Thread probes can be fitted directly into the M8 thread mount of the PH10T. The PH10T extends the PH10 series of head,is operated by the PHC10-2 and is ocmpatible with many other Renisaw products.

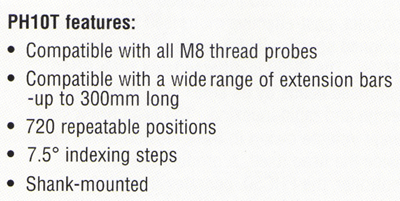

Feature

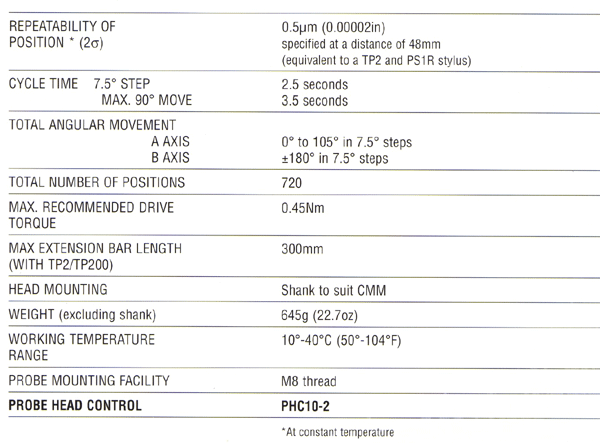

Specification
