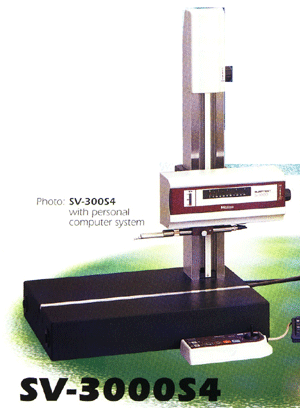

Surftest SV-2000/3000
• Mitutoyo's Surftest SV-2000/3000 Series provide high accuracy, high-level analysis, and multi-functionality in three dimensional analysis and measurement of fine contour, as well as the conventional type surface roughness measurement. • Peripheral devices such as the auto-leveling table and three axis adjustment table are available to enhance operability and to enable automatic measurement. •SURFPAK, a dedicated data-analyzing software is installed. This software allows data management in a consistent format, from the work site to the laboratory. • TCON, Touch-Panel Controller is given priority to ease of use, it makes high-level analysis affordable.
High Accuracy Mechanical Design!
• Ceramic, which is known for its superb anti-abrasive property, is used as the X-axis drive unit guide. No lubrication of the guide is required. • High-accuracy glass scales (X-axis resolution: 0.05ìm, Y-axis resolution: 1ìm) are built-in on X- and Y-axes to insure high-accuracy positioning. The SV-3000 series manifest high-reliability especially in the horizontal roughness parameters (S, Sm), that require high-accuracy of the X-axis travel. • Equipped with high-accuracy detector stylus. • Equipped with various functions such as: the "straightness compensation" function, which improves the linear accuracy of the Xaxis; the "circular compensation" function for the vertical movement of the stylus; and the "stylus-tip diameter compensation" function. • The stylus and the skid can be replaced easily. Optional styli and skids are available for a wide variety of roughness measurement applications, such as measurement of small holes, deep holes, etc. • An easy-to-operate Control Box is provided for SV-2000S2, SV-3000S4/H4/W4/S8/H8/W8. The Control Box independent of the main unit allows positioning, measurement start/stop, retracting, and other operations to be performed remotely. The Drive Unit up/down position and the X-axis traverse can be fine controlled manually.
Download Specification Here
|
|
