Surftest SV-2000/3000

• Mitutoyo's Surftest SV-2000/3000 Series provide high accuracy,
high-level analysis, and multi-functionality in
three dimensional analysis and measurement of fine
contour, as well as the conventional type surface roughness
measurement.
• Peripheral devices such as the auto-leveling table and three axis
adjustment table are available to
enhance operability and to enable automatic
measurement.
•SURFPAK, a dedicated data-analyzing
software is installed. This software allows
data management in a consistent format,
from the work site to the laboratory.
• TCON, Touch-Panel Controller is given
priority to ease of use, it makes high-level
analysis affordable.

High Accuracy Mechanical Design!

• Ceramic, which is known for its superb anti-abrasive property, is used as the X-axis drive unit guide. No lubrication of the guide is
required.
• High-accuracy glass scales (X-axis resolution: 0.05ìm, Y-axis resolution: 1ìm) are built-in on X- and Y-axes to insure high-accuracy
positioning. The SV-3000 series manifest high-reliability especially in the horizontal roughness parameters (S, Sm), that require
high-accuracy of the X-axis travel.
• Equipped with high-accuracy detector stylus.
• Equipped with various functions such as: the "straightness compensation" function, which improves the linear accuracy of the Xaxis;
the "circular compensation" function for the vertical movement of the stylus; and the "stylus-tip diameter compensation"
function.
• The stylus and the skid can be replaced easily. Optional styli and skids are available for a wide variety of roughness measurement
applications, such as measurement of small holes, deep holes, etc.

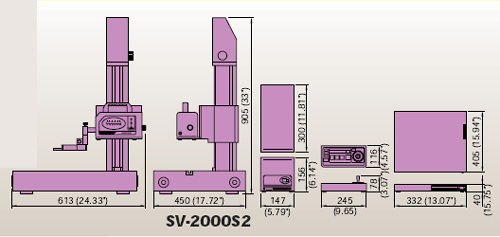

• An easy-to-operate Control Box is provided for SV-2000S2, SV-3000S4/H4/W4/S8/H8/W8. The Control Box independent of the
main unit allows positioning, measurement start/stop, retracting, and other operations to be performed remotely. The Drive Unit
up/down position and the X-axis traverse can be fine controlled manually.
