Mitutoyo offers innovative form measuring systems
capable of automated contour/surface roughness
measurement with independent/simultaneous multiaxis
CNC control. In addition to the high measuring
accuracy and reliability, these CNC models provide
high throughput in measurement and productivity.

• Maximum drive speed of 200mm/s
It is 40 times faster than conventional models.
• Independent/simultaneous
multi-axis CNC control
Diagonal tracing and column tracking
measurement are available.
• Easy part programming
It is very effective when measuring
multiple features on the same workpiece
and multiple workpieces on the pallet.
• Wide selection of models
The following six models are available.
CS-5000 CNC: Hybrid surface/contour measurement
SV-3000 CNC: Surface roughness measurement

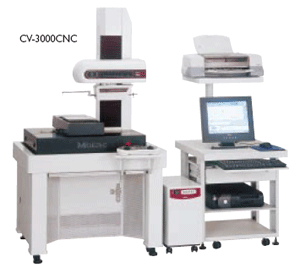

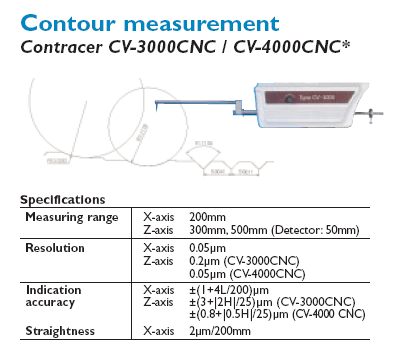

CV-3000 CNC: Contour measurement
CV-4000 CNC: Contour measurement (Holoscale)
SV-C3000 CNC: Combination of SV-3000 CNC & CV-3000 CNC
SV-C4000 CNC: Combination of SV-3000 CNC & CV-4000 CNC
