Features

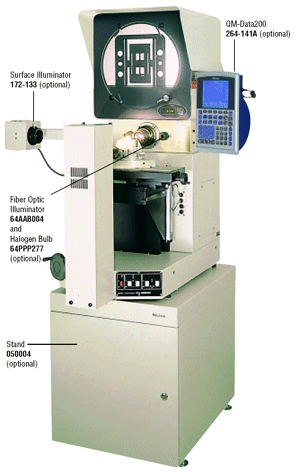

• Heavy-Duty, bench-top model with horizontal
optical system.
• Erect image on Day-bright screen.
• 14" (356mm) dia. protractor screen with
crosshair line for easy alignment.
• Digital angle measurement to 1' or 0.01°.
• Floating-type workstage incorporates linear
scales for fast, accurate measurement.
• Contour illumination with halogen bulb.
Surface illumination with halogen bulb.
• Suitable for thread pitch measurements —
free from blurred or distorted images when
the workpiece is angled.
• Wide range of accessories for various
applications.

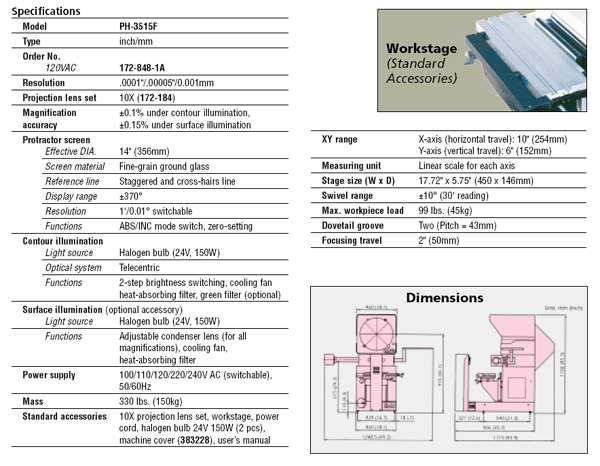

Specification

 Download Specification Here
